6SP60

product description Technical Parameters Performance curve

Applications
♦For water supply from wells or reservoirs.

♦For domesticuse,for civil and industrial applications.

♦For garden use and irrigation.

Operating conditions

♦Maximum fluid temperature up to +35℃.

♦Maximum sand content:0.25%.

♦Maximum immersion:100m.

♦Maximum well diameter:6” .

Motor and Pump
♦Rewindable motor

♦Three-phase:380V-415V/50Hz

♦Single-phase:220V-240V/50Hz

♦Equip with start control box or digital auto-control box

♦NEMA dimension standards

♦Curve tolerance according to lso 9906

Options on request

♦Special mechanical seal

♦Other voltages or frequency 60 Hz
Warranty: 1 year
♦(according to our general sales conditions).

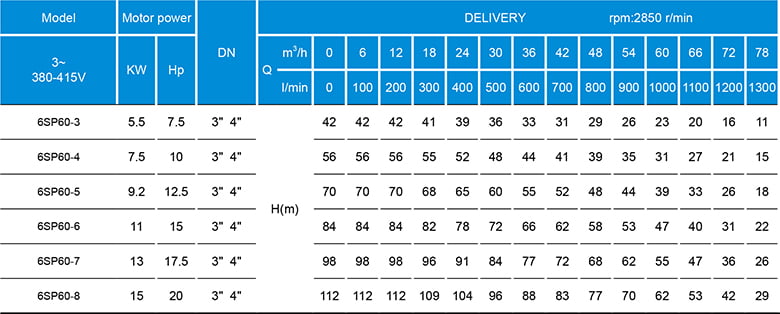

6SP60-3
6SP60-4
6SP6O-5
6SP60-6
6SP60-7
6SP6O-8
