QG

product description Technical Parameters Performance curve

Applications
♦For water supply from wells or reservoirs.

♦For domestic use,for civil and industrial applications.

♦For garden use and irrigation.

Operating conditions

♦Maximum fluid temperature up to +35℃.

♦Maximum sand content:0.25%.

♦Maximum immersion:90m.

♦Maximum well diameter:4” .

Motor and Pump

♦Rewindable motor

♦Three-phase:380V-415V/50Hz

♦Single-phase:220v-240V/50Hz

♦Equip with start control box or digital auto-control box

♦NEMA dimension standards

♦Curve tolerance according to lso 9906
Options on requestSpecial mechanical seal
♦Other voltages or frequency 60 Hz
Single phase motor with built-in capacitorWarranty: 1 year
♦(according to our general sales conditions).

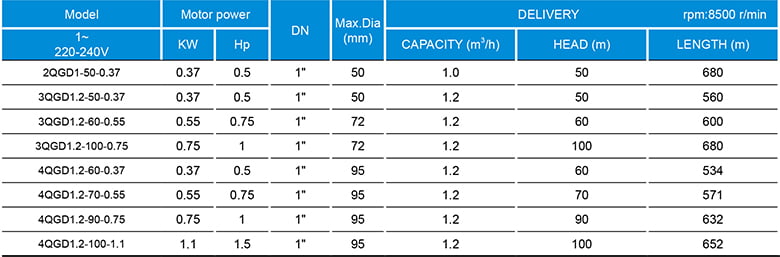

2QGD1-50-0.37

3QGD1.2-50-0.37

3QGD1.2-6O-0.55

3QGD1.2-100-0.75

4QGD1.2-60-0.37

4QGD1.2-70-0.55

4QGD1.2-90-0.75

4QGD1.2-100-1.1
