2SD

PRODUCTS

product description Technical Parameters Performance curve

Applications

♦For water supply from wells or reservoirs.

♦For domesticuse,for civil and industrial applications.

♦For garden use and irrigation.

Operating conditions
♦Maximum fluid temperature up to +35℃.Maximum sand content:0.25%.
♦2SD maximum well diameter:2".
♦2.5SD Maximum well diameter:2.5”.
Motor and Pump
♦Rewindable motor
♦Single-phase:220-240V/50Hz
♦Equip with start control box or digital auto-control boxPumps are designed by casing stressed
♦curve tolerance according to lso 9906
Options on request
♦Special mechanical seal
♦Other voltages or frequency 60 Hz

♦Single phase motor with built-in capacitor

Warranty: 1 year
♦(according to our general sales conditions).

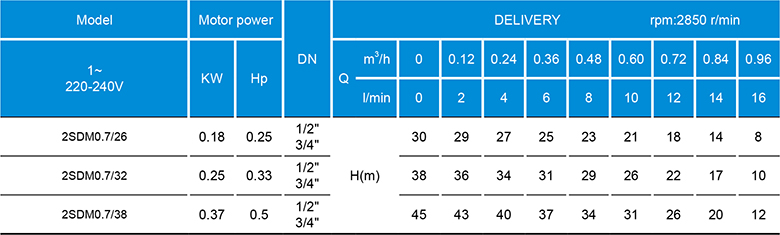

2SDM0.7/26
2SDM0.7/32
2SDM0.7/38
