3SDM4

PRODUCTS

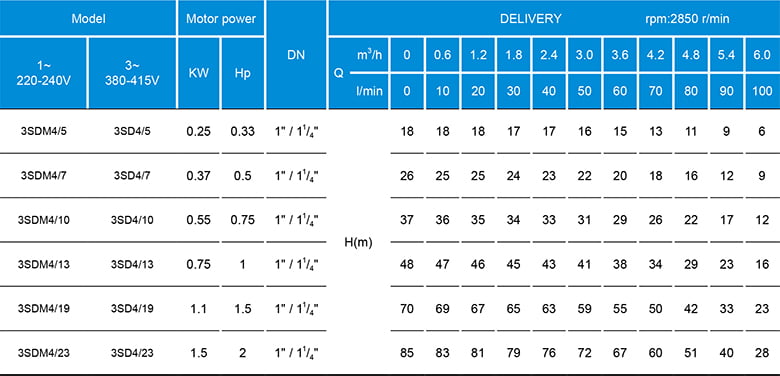

product description Technical Parameters Performance curve

Applications

♦For water supply from wells or reservoirs.

♦For domestic use,for civil and industrial applications.

♦For garden use and irrigation.

Operating conditions
♦Maximum fluid temperature up to +35℃.Maximum sand content:0.25%.
♦Maximum immersion:80m.
♦Maximum well diameter:3” .
Motor and Pump
♦Rewindable motor or Full obturated screen motorThree-phase:380v-415V/50Hz
♦Single-phase:220V-240V/50Hz
♦Equip with start control box or digital auto-control boxPumps are designed by casing stressed
♦curve tolerance according to Iso 99o6
Options on request
♦Special mechanical seal
♦Other voltages or frequency 60 Hz
♦Single phase motor with built-in capacitor
Warranty: 1 year
♦(according to our general sales conditions).

3SDM4/5
3SDM4/7
3SDM4/10
3SDM4/13
3SDM4/19
3SDM4/23
