5SR20

PRODUCTS

product description Technical Parameters Performance curve

Applications
♦For water supply from wells or reservoirs.

♦For domestic use,for civil and industrial applications.

♦For garden use and irrigation.

Operating conditions
♦Maximum fluid temperature up to +35℃.Maximum sand content:0.25%.
♦Maximum immersion:100m.Maximum well diameter:5” .
Motor and Pump
♦Rewindable motor
♦Three-phase:380V-415V/50HzSingle-phase:220V-240V/50Hz
♦Equip with start control box or digital auto-control boxNEMA dimension standards
♦Curve tolerance according to lso 9906
Options on request
♦Special mechanical seal
♦Other voltages or frequency 60 Hz
♦Single phase motor with built-in capacitor
Warranty: 1 year
♦(according to our general sales conditions).

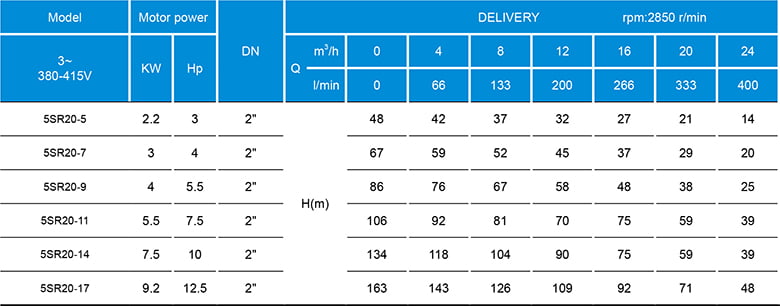

5SR20-5
5SR20-7
5SR20-9
5SR20-11
5SR20-14
5SR20-17
